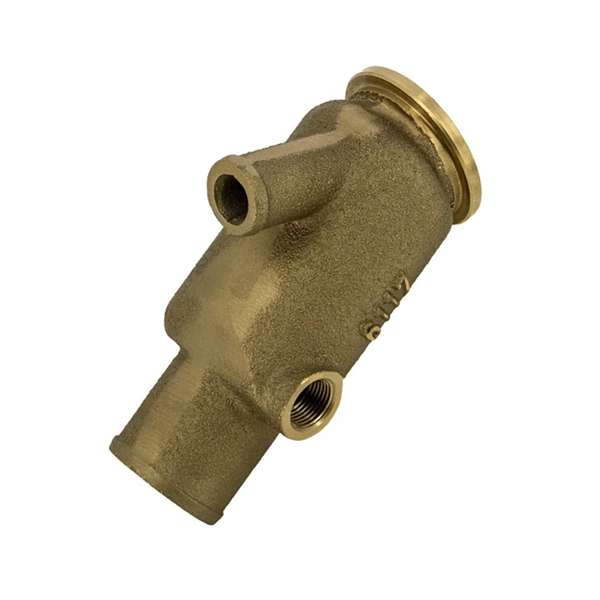

Replacement exhaust injection elbow for various Vetus Diesel M2 and M3 engines.
This part attaches to the heat exchanger and injects the raw cooling water into the engine exhaust to mix and cool the exhaust.
The elbow is retained by three clamps, held on with M8 20mm Allen bolts. The hose connection is 40mm. Note that this part is usually supplied painted yellow.
If required, the exhaust temperature sender STM2006 and copper washer STM2019 should also be ordered
Suitable for the following engines:
- M2.04, M2.C5, M2.02, M2.13, M2,D5, M2.06, M2.18
- M3.09, M3.28, M3.29
Spare part references are:
STM6117 - exhaust injection elbow

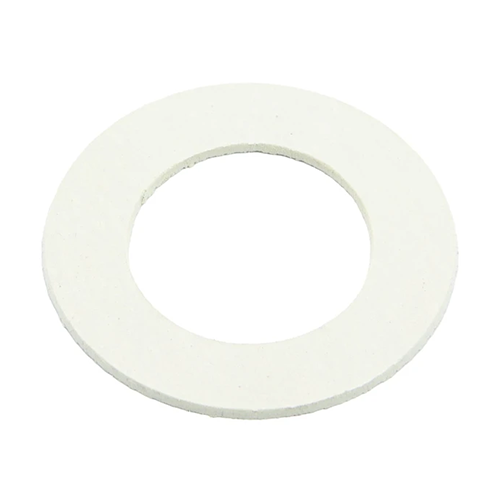

STM6152 - injection bend gasket

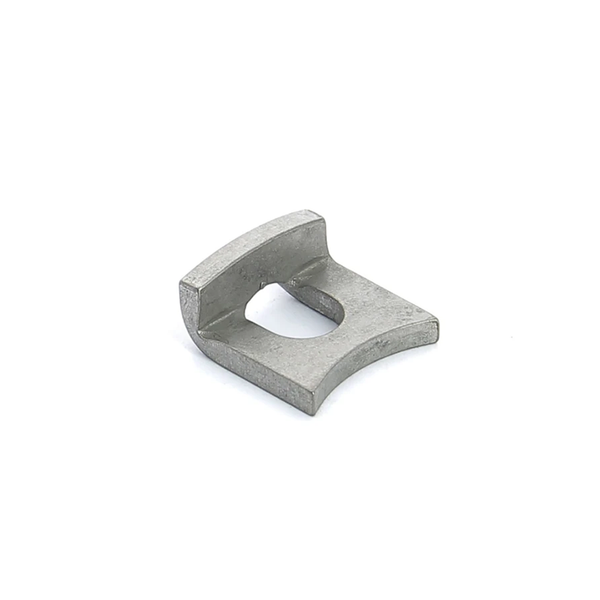

STM6216 - retaining clamp
